The Dione S 640 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution and NETD of less than 40 mK (available upon request) and 50 mK.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione S 640 CAM is lightweight and small with mechanical shutter. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

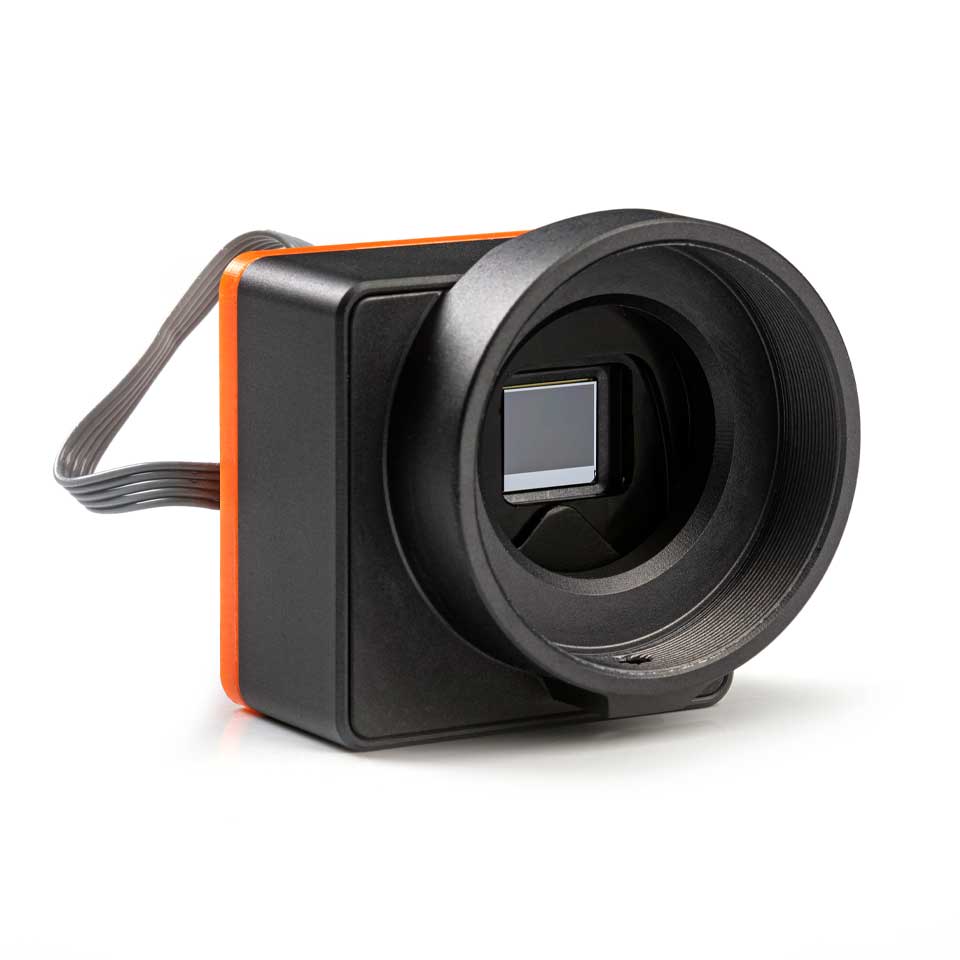

All Dione S 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione S 640 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M24/M34 lens (optional).
The ultra-compact Dione S 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs
| Dione S 640 CAM 40 mK | Dione S 640 CAM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 37.4 x 37.4 x 28.4* | 42 x 42 x 30.3* | 37.4 x 37.4 x 28.4* | 42 x 42 x 30.3* |
| Weight [gr] - excluding lens | 50* | 55* | 50* | 55* |
| Optical interface (optional) | M24 or M34 x 0.5 | M24 or M34 x 0.5 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione S 640 CAM 40 mK | Dione S 640 CAM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 0.800 (60 Hz operation; 16bitDV) | 0.800 (60 Hz operation; 16bitDV) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione S 640 CAM 40 mK | Dione S 640 CAM 50 mK | |
| Image format [pixels] | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 7.68 x 5.76 [9.6 diagonal] | 7.68 x 5.76 [9.6 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV**, MIPI-CSI-2**, USB** | 16bit DV**, MIPI-CSI-2**, USB** |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
