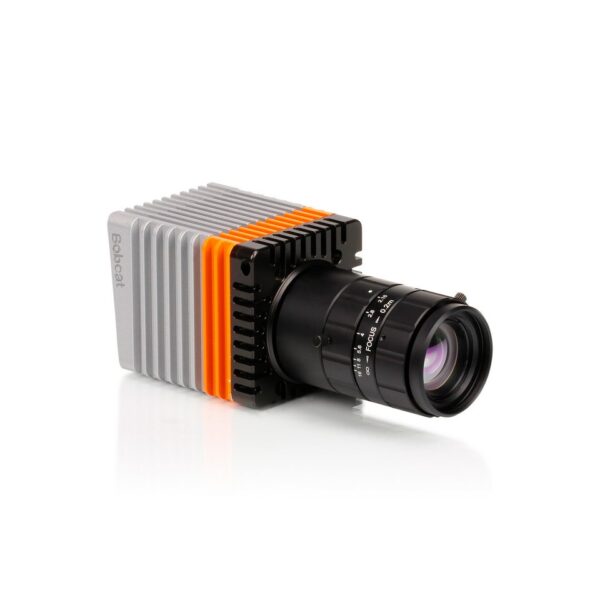

The Bobcat+ 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The Bobcat+ 320 cameras come with GigE Vision interface and offer high frame rates up to 400 Hz. The new and improved Bobcat+ 320 now comes with two gain modes (high gain and high dynamic range) and two read out modes (IWR or ITR). Moreover, a vSWIR version is also available.
The Bobcat+ 320 targets machine vision, safetey and security, scientific research, and process monitoring.
Benefits & Features
• Flexible and easy-to-use
• GigE Vision interface
• Low dark current
• SWIR or vSWIR
• High frame rate of 400 Hz
• IWR or ITR read out
| Bobcat+ 320 GigE 400 | Bobcat+ 320 GigE 400 vSWIR | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 55 x 55 x 82 | 55 x 55 x 82 |
| Weight [gr] - excluding lens | 334 | 334 |
| Optical interface | C-mount or M42 | C-mount or M42 |
| Connector GigE | RJ-45 | RJ-45 |
| Connector CameraLink | - | - |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] |
| Connector trigger | SMA | SMA |
| Bobcat+ 320 GigE 400 | Bobcat+ 320 GigE 400 vSWIR | |
| Operating case temperature [°C] | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 4 [no TE cooler] | 4 [no TE cooler] |
| Power supply voltage | DC 12 V | DC 12 V |
| Shock | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] |
| Vibration | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] |
| IP rating | IP40 | IP40 |
| Regulatory compliance | CE, RoHS | CE, RoHS |
| Bobcat+ 320 GigE 400 | Bobcat+ 320 GigE 400 vSWIR | |
| Image format [pixels] | 320 x 256 | 320 x 256 |
| Pixel pitch [µm] | 20 | 20 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor temperature stabilization | TE cooler | TE cooler |
| Integration type | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 6.4 x 5.12 [diagonal 8.2] | 6.4 x 5.12 [diagonal 8.2] |
| Optical fill factor | 100% | 100% |
| Spectral range [nm] | 900 - 1700 | 500 - 1700 |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | High Gain [HG] & High Dynamic Range mode [HDR] | High Gain [HG] & High Dynamic Range mode [HDR] |
| Full well capacities [electrons] | 45k [HG] & 500k [HDR] | 45k [HG] & 500k [HDR] |
| Read noise [electrons] | 120 [HG] & 500 [HDR] | 120 [HG] & 500 [HDR] |
| Dark current [electrons/second] | <1E5 [at 288K sensor temp and 150mV reverse bias] | <2E5 [at 288K sensor temp and 150mV reverse bias] |
| Read out mode | ITR and IWR | ITR and IWR |
| Pixel operability | >99.5% | >99.5% |
| Preconfigured exposure time range [ms] | 0.1 to 40 in HG; 0.1 to 20 in HDR | 0.1 to 40 in HG; 0.1 to 20 in HDR |
| Max frame rate [Hz] [full frame] | 400 | 400 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 32 x 4 [step 16 x 4] | 32 x 4 [step 16 x 4] |
| Max frame rate [Hz] [min region size] | >10000 | >10000 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | GigE Vision | GigE Vision |
| Digital output format | GigE Vision [16 bit] | GigE Vision [16 bit] |
| Trigger | In or out via SMA [Configurable] | In or out via SMA [Configurable] |
The FXO stands for excellent image quality. The fast 10GigE interface is an extremely economical interface and at the same time offers excellent conditions for use in larger networks. The large framebuffer and packet resend ensure reliable top frame rates. Up to 100 m cable length is supported by the modern network technology of the FXO.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are aimed at applications in industrial automation.
Technical highlights:
The interface standard CoaXPress was developed to meet the need for higher bandwidth generated by recently launched sensors. SVS-Vistek is providing CoaXPress cameras with 4 CXP-6 lines. Thus, the CXP data interface is providing 25 GBit/s.
The HR series with CoaXPress is focusing on latest CMOS sensors with highest resolutions. Excellent thermal design and electronics provide superb image quality and low (structured) noise. The HR is a high end industrial camera packed with features:
Camera Link offers high data rates, deterministic timing and very direct access to the image sensor. Our high resolution industrial cameras with Camera Link provide a wide range of core features:
Camera Link permits settings and operating modes that are not available with other interfaces:

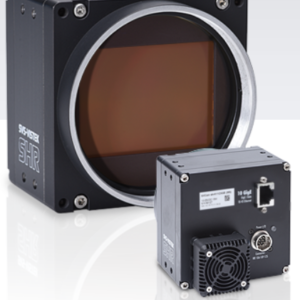

The high resolution SHR series offers outstanding image quality. This is made possible by the excellent physical characteristics of large pixels in large format sensors. The thermally highly optimized housing guarantees highest optical precision. The large M72 lens mount (FFD 19,55) can be adapted to any lens.
Highlights of the SHR series (some features only on some models)
10 GigE interface
The economical high-performance 10 GigE interface offers high data transfer speeds of up to 1.1 GB/s for these large images. A special frame grabber is not required.
