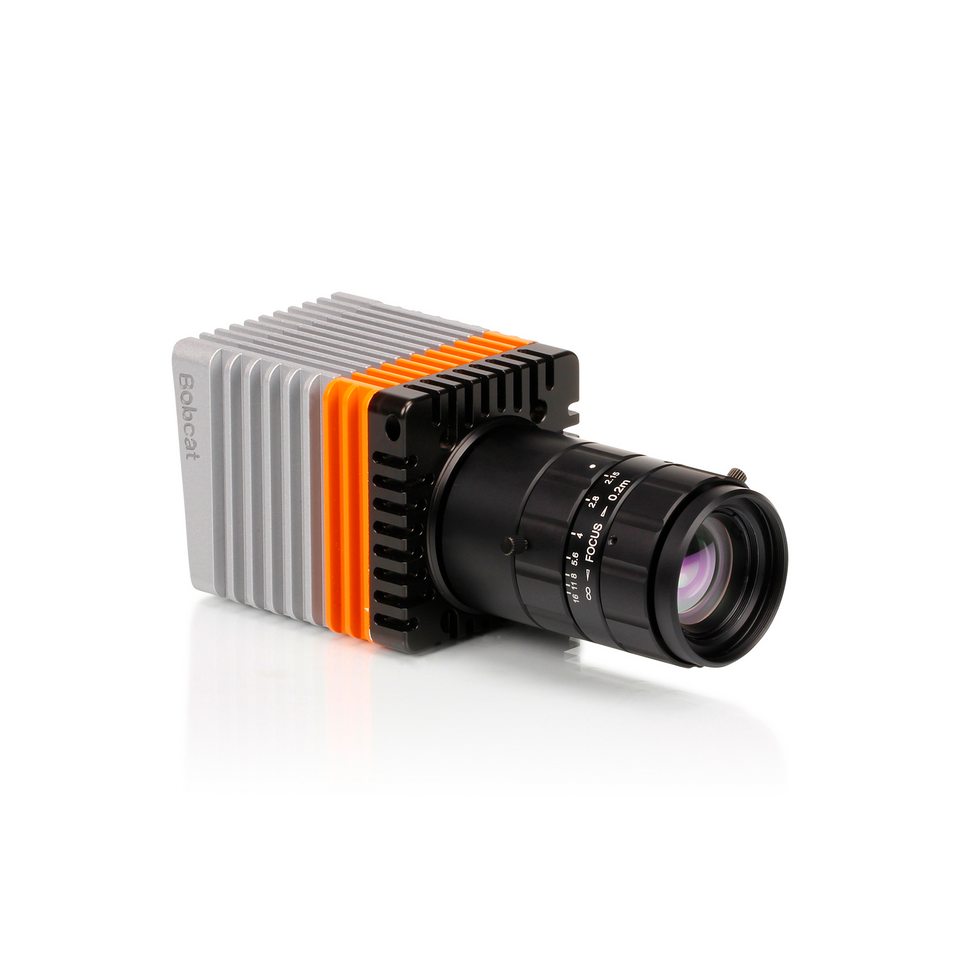

The Bobcat 320 TE0 and WL series are based on an in-house developed, uncooled InGaAs detector with a 320 x 256 pixel resolution.
The Bobcat 320 TE0 and WL cameras are offered with GigE Vision interface, 400 Hz maximum frame rate and feature low weight and power.
The Bobcat 320 WL comes with a windowless uncooled detector, specifically targeting laser beam analysis and laser wavefront sensing applications.
Benefits & Features
• Low cost
• Flexible and easy-to-use
• Low dark current
• High speed 400 Hz
• Windowless version optional (WL)
| Bobcat 320 TE0 GigE 400 | Bobcat 320 WL GigE 400 | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 55 x 55 x 74 | 55 x 55 x 74 |
| Weight [gr] - excluding lens | 280 | 280 |
| Optical interface | C-mount or M42 | C-mount or M42 |
| Connector GigE | RJ-45 | RJ-45 |
| Connector CameraLink | - | - |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] |
| Connector trigger | SMA | SMA |
| Bobcat 320 TE0 GigE 400 | Bobcat 320 WL GigE 400 | |
| Operating case temperature [°C] | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 4 | 4 |
| Power supply voltage | DC 12 V | DC 12 V |
| Shock | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] |
| Vibration | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] |
| IP rating | IP40 | IP40 |
| Regulatory compliance | CE, RoHS | CE, RoHS |
| Bobcat 320 TE0 GigE 400 | Bobcat 320 WL GigE 400 | |
| Image format [pixels] | 320 x 256 | 320 x 256 |
| Pixel pitch [µm] | 20 | 20 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor temperature stabilization | Uncooled | Uncooled and windowless detector |
| Integration type | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 6.4 x 5.12 [diagonal 8.2] | 6.4 x 5.12 [diagonal 8.2] |
| Optical fill factor | 100% | 100% |
| Spectral range [nm] | 900 - 1700 | 900 - 1700 |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | Single Gain | Single Gain |
| Full well capacities [electrons] | 70k | 70k |
| Read noise [electrons] | 110 | 110 |
| Dark current [electrons/second] | <2E6 [for 150 mV reverse bias] typically | <2E6 [for 150 mV reverse bias] typically |
| Read out mode | ITR | ITR |
| Pixel operability | >99.5% | >99.5% |
| Preconfigured exposure time range [ms] | 0.5 to 4 | 0.5 to 4 |
| Max frame rate [Hz] [full frame] | 400 | 400 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 32 x 4 [step 4 x 1] | 32 x 4 [step 4 x 1] |
| Max frame rate [Hz] [min region size] | >10000 | >10000 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | GigE Vision | GigE Vision |
| Digital output format | GigE Vision [16 bit] | GigE Vision [16 bit] |
| Trigger | In or out via SMA [Configurable] | In or out via SMA [Configurable] |
