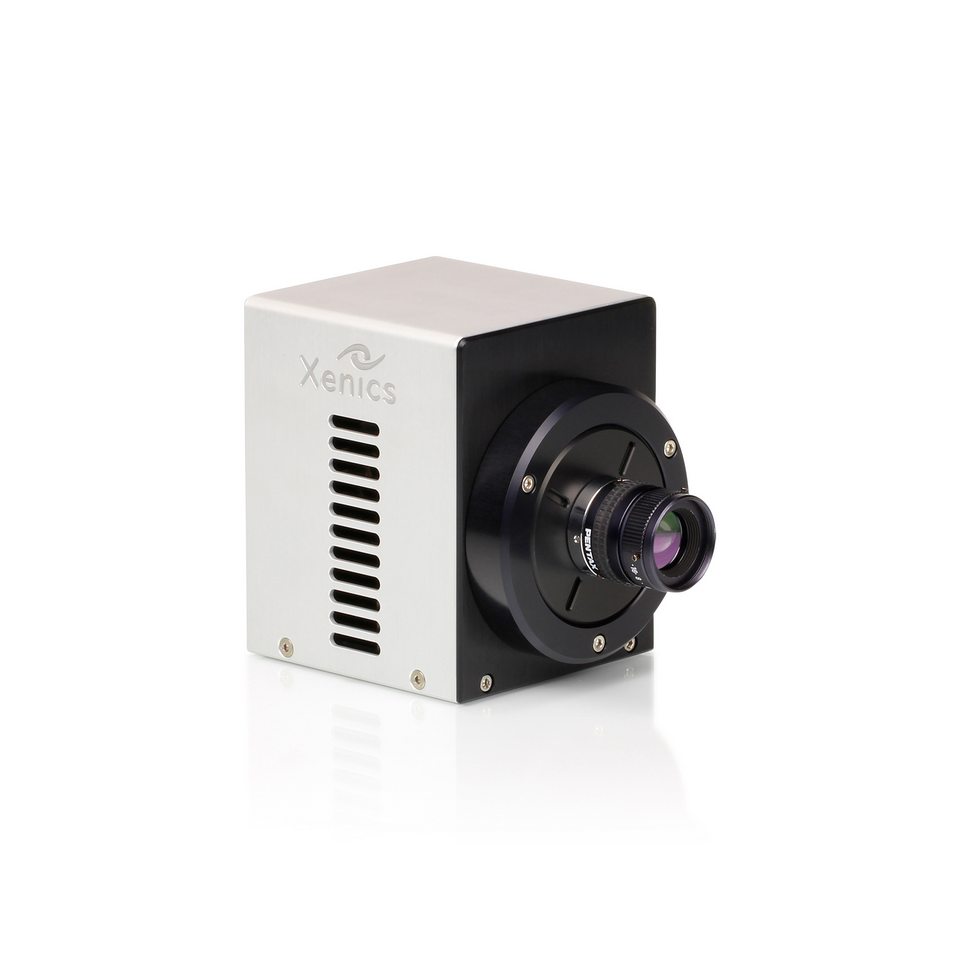

The Xeva 320 series is based on an in-house manufactured InGaAs detector with a 320 x 256 pixel resolution.
The Xeva 320 cameras offer frame rates of more than 340 Hz. The camera comes with a CameraLink or USB interface.
A visible enhanced short-wave infrared (vSWIR) option for extended wavelength response into the visible band is available.
Benefits & Features
• vSWIR optional
• Sensor cooling available for increased exposure time range
• Low dark current
• USB and/or CameraLink interfacing options
• Versatility with gain modes
|
Xeva 1.7 320 TE1 USB 100 SWIR / vSWIR
Xeva 1.7 320 TE3 USB 100 |
Xeva 1.7 320 TE1 CL 60 / 100 / 350 SWIR / vSWIR
Xeva 1.7 320 TE3 CL 60 / 100 / 350 |
|
| Approximate dimensions - excluding lens [width x height x length] [mm] | 88 x 111 x 107; 88 x 111 x 114 [TE3] | 88 x 111 x 107; 88 x 111 x 114 [TE3] |
| Weight [gr] - excluding lens | 1300 | 1300 |
| Camera cooling | Forced convection [fan] | Forced convection [fan] |
| Optical interface | C-mount or M42 | C-mount or M42 |
| Connector USB | 4-pin TRIAD 01 | Mini-USB |
| Connector CameraLink | - | Standard MDR |
| Connector power | 4-pin TRIAD 01 | 4-pin TRIAD 01 |
| Connector trigger | 5-pin TRIAD 01 | 5-pin TRIAD 01 |
|
Xeva 1.7 320 TE1 USB 100 SWIR / vSWIR
Xeva 1.7 320 TE3 USB 100 |
Xeva 1.7 320 TE1 CL 60 / 100 / 350 SWIR / vSWIR
Xeva 1.7 320 TE3 CL 60 / 100 / 350 |
|
| Ambient operating temperature range [°C] | From 0 to +50 | From 0 to +50 |
| Storage temperature [°C] | From -40 to 80 | From -40 to 80 |
| Power consumption [W] | Up to 30 | Up to 30 |
| Power supply voltage | DC 12 V | DC 12 V |
| Regulatory compliance | CE, RoHS | CE, RoHS |
|
Xeva 1.7 320 TE1 USB 100 SWIR / vSWIR
Xeva 1.7 320 TE3 USB 100 |
Xeva 1.7 320 TE1 CL 60 / 100 / 350 SWIR / vSWIR
Xeva 1.7 320 TE3 CL 60 / 100 / 350 |
|
| Image format [pixels] | 320 x 256 | 320 x 256 |
| Pixel pitch [µm] | 30 | 30 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor cooling | TE cooler; 3-stage TE cooler [TE3] | TE cooler; 3-stage TE cooler [TE3] |
| Integration type | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 9.6 x 7.68 [diagonal 12.3] | 9.6 x 7.68 [diagonal 12.3] |
| Optical fill factor | 100% | 100% |
| Spectral range [nm] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | High Gain (HG) & High Dynamic Range (HDR) | High Gain (HG) & High Dynamic Range (HDR) |
| Full well capacities [electrons] | 170k [HG] & 3.5M [HDR] | 170k [HG] & 3.5M [HDR] |
| Read noise [electrons] | 150 [HG] & 1000 [HDR] | 150 [HG] & 1000 [HDR] |
| Dark current [electrons/second] | <200k at 280K sensor temperature; <10k at 223K sensor temperature [TE3] | <200k at 280K sensor temperature; <10k at 223K sensor temperature [TE3] |
| Read out mode | ITR | ITR |
| Pixel operability | >99% | >99% |
| Preconfigured exposure time range [ms] | 1 - 20; 1 - 200 [TE3] - max exposure time for TE3 is >10 seconds in HG | 1 - 20; 1 - 200 [TE3] - max exposure time for TE3 is >10 seconds in HG |
| Max frame rate [Hz] [full frame] | 100 | 60, 100 or 344 |
| Region of interest | Yes | Yes [not for 60 Hz and 100 Hz model] |
| Min region size [pixels] | 32 x 8 | 128 x 8 [not for 60 Hz and 100 Hz model] |
| Max frame rate [Hz] [min region size] | >10000 | >10000 [not for 60 Hz and 100 Hz model] |
| Analog-to-Digital [ADC] [bits] | 12 | 14 |
| Command and control | USB 2.0 | USB 2.0 |
| Digital output format | USB 2.0 | CameraLink [14 bit] [max 100 Hz frame rate with USB 2.0] |
| Trigger | In via trigger connector | In via trigger connector - only recommended with CameraLink data interface |
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
The ECO-series is compelling by virtue of its extremely compact design (38 x 38 x 33 mm) and offers the best value for money. Resolution ranging from VGA to 5 MegaPixel combined with high frame rates. The ECO is small, robust, fit for the factory floor, manufactured with precision, safe to connect, offers an LED controller, is PLC ready and reliable.
The interface standard CoaXPress was developed to meet the need for higher bandwidth generated by recently launched sensors. SVS-Vistek is providing CoaXPress cameras with 4 CXP-6 lines. Thus, the CXP data interface is providing 25 GBit/s.
The HR series with CoaXPress is focusing on latest CMOS sensors with highest resolutions. Excellent thermal design and electronics provide superb image quality and low (structured) noise. The HR is a high end industrial camera packed with features:
The SHR features low-noise half-frame CCD and CMOS images sensors with large pixels in a class of its own. State-of-the-art tap sensor balancing and user defined fixed pattern noise reduction guarantee outstanding image quality. The highest structural precision of the sensor adjustment in a massive housing make the SHR with its lens shading correction the ideal partner for the most demanding optical applications.
CoaXPress specific features
CoaXPress currently is the fastest standardized industrial solution for long-distance industrial cameras with thin cables. The industrial camera I/O interface facilitates integration.
