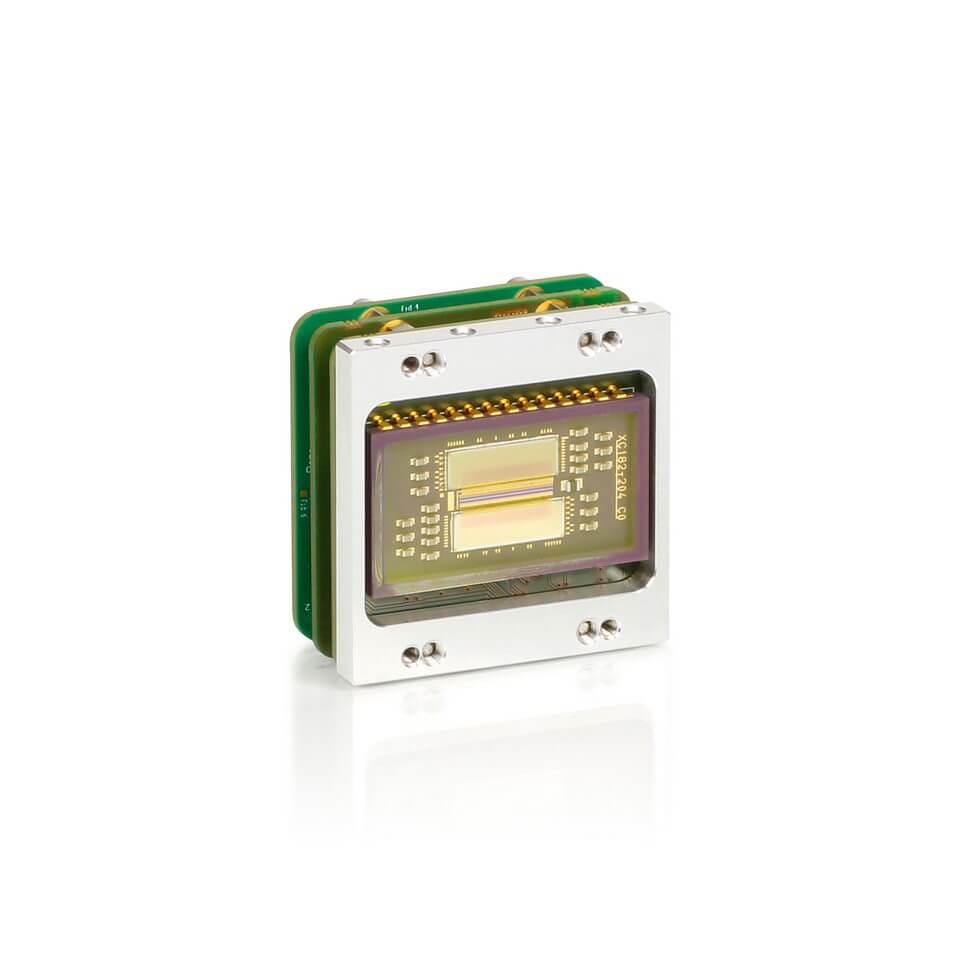

Xenics Short-Wave Infrared (SWIR) XSL SQ Series

Name: Xenics Short-Wave Infrared (SWIR) XSL SQ Series
SKU: 3431
Availability: InStock

The XSL square (SQ) series, based on an in-house developed linear detector, offer affordable short-wave infrared (SWIR) line-scan images.

The XSL SQ camera modules are able to image line rates up to 40 kHz. The modules come with an industry-standard CameraLink, GigE Vision or QTE Samtec interface.

Depending on your imaging requirements, three resolutions of 512, 1024 or 2048 pixels are offered.

Benefits & Features
• High speed line-scan imaging up to 40 kHz
• High resolution
• CameraLink, GigE Vision or QTE Samtec interfacing

Add to Proposal

Mechanical Specifications:

	XSL 512 SQ CL / GigE	XSL 512 SQ 16bitDV	XSL 1024 SQ CL / GigE	XSL 1024 SQ 16bitDV	XSL 2048 SQ CL / GigE	XSL 2048 SQ 16bitDV
Approximate dimensions - excluding lens [width x height x length] [mm]	45 x 45 x 37 [CL] 45 x 45 x 55 [GigE]	45 x 45 x 28	45 x 45 x 37 [CL] 45 x 45 x 55 [GigE	45 x 45 x 28	45 x 45 x 37 [CL] 45 x 45 x 55 [GigE]	45 x 45 x 28
Weight [gr] - excluding lens	55 [CL], 96 [GigE]	43	55 [CL], 96 [GigE]	43	55 [CL], 96 [GigE]	43
Optical interface [optional]	M42, C-mount or F-mount	M42, C-mount or F-mount	M42, C-mount or F-mount	M42, C-mount or F-mount	M42, C-mount or F-mount	M42, C-mount or F-mount
Connector CameraLink	Standard SDR [CL]	-	Standard SDR [CL]	-	Standard SDR [CL]	-
Connector GigE	RJ-45 [GigE]	-	RJ-45 [GigE]	-	RJ-45 [GigE]	-
Connector power	Hirose HR10-7R-SA[73]	-	Hirose HR10-7R-SA[73]	-	Hirose HR10-7R-SA[73]	-
Connector trigger	SMA	-	SMA	-	SMA	-
Connector general I/O	-	QTE-20-02-L-D-A Samtec	-	QTE-20-02-L-D-A Samtec	-	QTE-20-02-L-D-A Samtec

Environmental & Power Specifications:

	XSL 512 SQ CL / GigE	XSL 512 SQ 16bitDV	XSL 1024 SQ CL / GigE	XSL 1024 SQ 16bitDV	XSL 2048 SQ CL / GigE	XSL 2048 SQ 16bitDV
Ambient operating temperature range [°C]	From -40 to +70; also available in temperature range 0 - 50	From -40 to +70; also available in temperature range 0 - 50	From -40 to +70; also available in temperature range 0 - 50	From -40 to +70; also available in temperature range 0 - 50	From -40 to +70; also available in temperature range 0 - 50	From -40 to +70; also available in temperature range 0 - 50
Storage temperature [°C]	From -50 to +85	From -50 to +85	From -50 to +85	From -50 to +85	From -50 to +85	From -50 to +85
Power consumption [W]	2.6 [CL], 4.6 [GigE]	2.3	2.6 [CL], 4.6 [GigE]	2.3	2.6 [CL], 4.6 [GigE]	2.3
Power supply voltage	DC 12 V	DC 3.3 V	DC 12 V	DC 3.3 V	DC 12 V	DC 3.3 V
Shock	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
Regulatory compliance	RoHS	RoHS	RoHS	RoHS	RoHS	RoHS

Electro-Optical Specifications:

	XSL 512 SQ CL / GigE	XSL 512 SQ 16bitDV	XSL 1024 SQ CL / GigE	XSL 1024 SQ 16bitDV	XSL 2048 SQ CL / GigE	XSL 2048 SQ 16bitDV
Sensor format [pixels]	512	512	1024	1024	2048	2048
Pixel pitch [µm]	25	25	12.5	12.5	12.5	12.5
Pixel height [µm]	25	25	12.5	12.5	12.5	12.5
Detector type	InGaAs photodiode array with CTIA ROIC	InGaAs photodiode array with CTIA ROIC	InGaAs photodiode array with CTIA ROIC	InGaAs photodiode array with CTIA ROIC	InGaAs photodiode array with CTIA ROIC	InGaAs photodiode array with CTIA ROIC
Integration type	Snapshot - global shutter	Snapshot - global shutter	Snapshot - global shutter	Snapshot - global shutter	Snapshot - global shutter	Snapshot - global shutter
Spectral range [nm]	900 - 1700	900 - 1700	900 - 1700	900 - 1700	900 - 1700	900 - 1700
Quantum efficiency	~80% [typical peak value]	~80% [typical peak value]	~80% [typical peak value]	~80% [typical peak value]	~80% [typical peak value]	~80% [typical peak value]
Full well capacities [electrons]	450k to 32M	450k to 32M	450k to 32M	450k to 32M	450k to 10M	450k to 10M
Read out mode	IWR and ITR	IWR and ITR	IWR and ITR	IWR and ITR	IWR and ITR	IWR and ITR
Pixel operability	>99.6%	>99.6%	>99%	>99%	>98%	>98%
Max line rate [kHz]	40	40	40	40	10	10
Analog-to-Digital [ADC] [bits]	14	14	14	14	14	14
Command and control	CameraLink or GigE Vision	QTE Samtec	CameraLink or GigE Vision	QTE Samtec	CameraLink or GigE Vision	QTE Samtec
Digital output format	CameraLink or GigE Vision [16 bit]	Digital Video [16 bit]	CameraLink or GigE Vision [16 bit]	Digital Video [16 bit]	CameraLink or GigE Vision [16 bit]	Digital Video [16 bit]
Trigger	In or out via SMA [configurable]. For CL - additional trigger in available via CC1	In or out via QTE Samtec [configurable]	In or out via SMA [configurable]. For CL - additional trigger in available via CC1	In or out via QTE Samtec [configurable]	In or out via SMA [configurable]. For CL - additional trigger in available via CC1	In or out via QTE Samtec [configurable]
