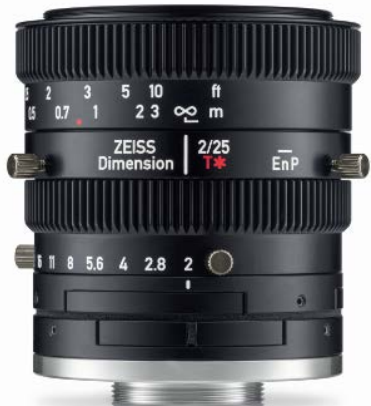

The new ZEISS Dimension® family meets the highest demands for industrial applications. The lenses developed for use with a C-mount are designed for image sensors up to a size of 4/3” and offer exceptional image quality in a compact, lightweight and rugged aluminum housing. The ZEISS Dimension® family consists of six focal lengths ranging from 8 to 50 millimeters. Almost all ZEISS Dimension lenses have the same outer diameter for reliable planning when mounting them in production facilities.
Features:
• fast f/2 aperture
• excellent image quality, leading to highest data precision over the complete image field
• for industrial cameras up to sensor sizes of 4/3’’
• robust full-metal construction made of aluminium
• small and compact
• possibility to adjust the back focal distance to compensate for tolerances of camera bayonets
• possibility for azimuthal adjustment ensures best possible readability of scales
• fixable focus and aperture settings
• optimized spectral transmission in VIS and near IR range through ZEISS T* coating
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consits of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
• 100° angular field with highest optical
performance
• Precise manual focusing
• Robust full-metal construction
• Continuous aperture setting or click stop
• For industrial cameras up to sensor sizes of
24×36 mm or 41mm line sensors
• Features special screws to fix focus and aperture
settings even in rough situations
• High contrast over the entire image field
